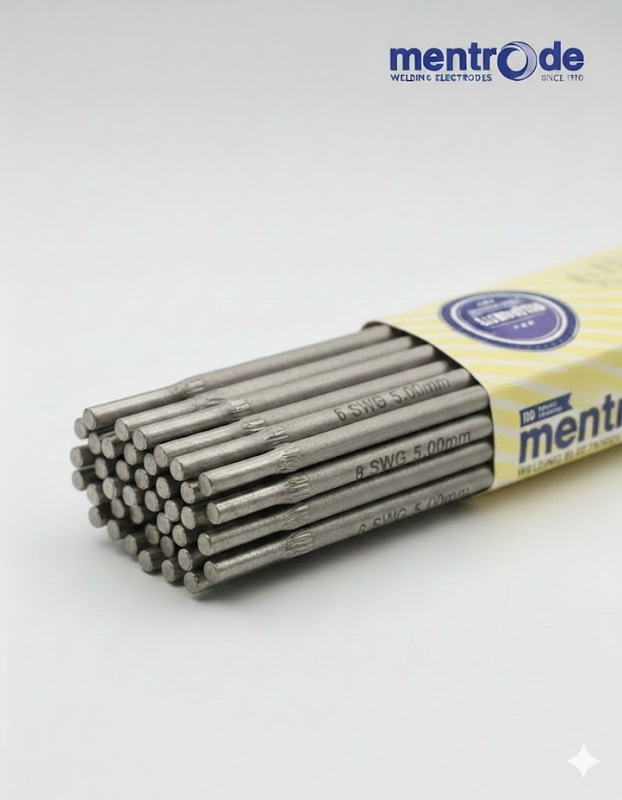

Mentrode 6013: The Industrial Workhorse in 6 SWG (5.00mm)
When you are welding thick sections of steel, "standard" rods simply won't cut it. You need an electrode that can handle the heat and lay down a heavy bead in a single pass.Mentrode 5.00mm (6 SWG) electrodes are engineered for the most demanding industrial environments, providing a massive 450mm length for maximum continuous welding time.
Designed for Heavy-Section Steel (6 SWG / 5.00mm)
The 6 SWG gauge is the professional's choice for shipbuilding, heavy machinery manufacturing, and large-scale structural steelwork. It is designed to carry high currents without overheating, ensuring a deep, consistent fuse into base metals 10mm and thicker. Despite the high output, Mentrode's specialized flux coating maintains the classic 6013 "soft arc," making a rod this large surprisingly easy to control.
Key Performance Features:
Industrial 450mm Length: Gain more "arc-on" time. The extended length means fewer rod changes during long seams, significantly increasing daily output and reducing stub-end waste.
Massive Deposition Rate: The 5.00mm core allows you to fill large joints and create heavy fillet welds in record time, reducing the number of passes required.
Superior Slag Management: Our high-performance flux produces a slag that protects the large molten pool and then releases cleanly, minimizing post-weld cleanup on massive structures.
High-Current Stability: Optimized for high-amperage AC and DC machines, providing a steady, non-fluctuating arc that resists sticking and "side-burn."
The Affordable Industrial Choice: Mentrode bridges the gap between expensive specialty brands and low-quality alternatives, offering a high-spec 6 SWG rod at a price designed for bulk industrial consumption.
Technical Specifications:
Classification: AWS A5.1 E6013
Diameter: 5.00mm (6 SWG)
Length: 450mm (Extra-Long Industrial Size)
Operating Current: High Amperage (typically 180A - 240A+)
Best For: Shipbuilding, bridge construction, heavy storage tanks, and large earth-moving equipment repair.
Product Specifications:
No. of Pieces per Packet : 32 Nos
No. of Packets per Box: 8 Packets
ISI Standard: IS 814
